ISO 4033 Hexagon High Nut Dimensions
Hexagon high nuts manufactured according to ISO 4033 international fastening standards.
ISO 4033 Hexagon High Nuts are designed for industrial fastening systems requiring increased thread engagement and improved load-bearing performance. These high hex nuts are commonly used in heavy-duty mechanical assemblies, structural applications, and industrial engineering systems.

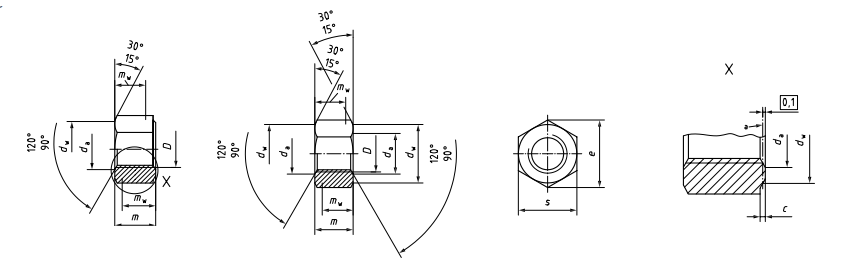

ISO 4033 Hexagon High Nuts - Style 2 Dimensions
| Nominal Size | c | da | e | s | m | Weight Per Pc (H=D) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Min | Max | Min | Max | Min | ||
| M1.6 | 0.2 | 0.1 | 2.42 | 2 | 3.41 | 3.2 | 3.02 | - | - | - |
| M2 | 0.2 | 0.1 | 3.07 | 2.5 | 4.32 | 4 | 3.82 | - | - | - |
| M2.5 | 0.3 | 0.1 | 4.07 | 3.5 | 5.45 | 5 | 4.82 | - | - | - |
| M3 | 0.4 | 0.15 | 4.57 | 4 | 6.01 | 5.5 | 5.32 | - | - | - |
| M4 | 0.4 | 0.15 | 5.88 | 5 | 7.66 | 7 | 6.78 | - | - | - |
| M5 | 0.5 | 0.15 | 6.88 | 6 | 8.79 | 8 | 7.78 | 5.10 | 4.80 | - |
| M6 | 0.50 | 0.15 | 6.75 | 6.00 | 11.05 | 10.00 | 9.78 | 5.70 | 5.40 | 0.0028 |
| M8 | 0.60 | 0.15 | 8.75 | 8.00 | 14.38 | 13.00 | 12.73 | 7.50 | 7.14 | 0.0057 |
| M10 | 0.60 | 0.15 | 10.80 | 10.00 | 17.77 | 16.00 | 15.73 | 9.30 | 8.94 | 0.0126 |
| M12 | 0.60 | 0.15 | 13.00 | 12.00 | 20.03 | 18.00 | 17.73 | 12.00 | 11.57 | 0.0181 |
| M14 | 0.60 | 0.15 | 15.10 | 14.00 | 23.36 | 21.00 | 20.67 | 14.10 | 13.40 | 0.0300 |
| M16 | 0.80 | 0.20 | 17.30 | 16.00 | 26.75 | 24.00 | 23.67 | 16.40 | 15.70 | 0.0374 |
| M18 | 0.80 | 0.20 | 19.50 | 18.00 | 29.56 | 27.00 | 26.16 | 17.60 | 16.90 | 0.0522 |
| M20 | 0.80 | 0.20 | 21.60 | 20.00 | 32.95 | 30.00 | 29.16 | 20.30 | 19.00 | 0.0734 |
| M22 | 0.80 | 0.20 | 23.70 | 22.00 | 37.29 | 34.00 | 33.00 | 21.80 | 20.50 | 0.0880 |
| M24 | 0.80 | 0.20 | 25.90 | 24.00 | 39.55 | 36.00 | 35.00 | 23.90 | 22.60 | 0.1242 |
| M27 | 0.80 | 0.20 | 29.10 | 27.00 | 45.20 | 41.00 | 40.00 | 26.70 | 25.40 | 0.1770 |
| M30 | 0.80 | 0.20 | 32.40 | 30.00 | 50.85 | 46.00 | 45.00 | 28.60 | 27.30 | 0.2528 |
| M33 | 0.80 | 0.20 | 35.60 | 33.00 | 55.37 | 50.00 | 49.00 | 32.50 | 30.90 | 0.3280 |
| M36 | 0.80 | 0.20 | 38.90 | 36.00 | 60.79 | 55.00 | 53.80 | 34.70 | 33.10 | 0.4452 |
| M39 | 1.00 | 0.30 | 42.10 | 39.00 | 66.44 | 60.00 | 58.80 | 37.50 | 35.90 | 0.5885 |
| M42 | 1.00 | 0.30 | 45.40 | 42.00 | 71.30 | 65.00 | 63.10 | - | - | 0.7298 |
| M45 | 1.00 | 0.30 | 48.60 | 45.00 | 76.95 | 70.00 | 68.10 | - | - | 0.9410 |
| M48 | 1.00 | 0.30 | 51.80 | 48.00 | 82.60 | 75.00 | 73.10 | - | - | 1.1354 |
| M52 | 1.00 | 0.30 | 56.20 | 52.00 | 88.25 | 80.00 | 78.10 | - | - | 1.3930 |
| M56 | 1.00 | 0.30 | 60.50 | 56.00 | 93.56 | 85.00 | 82.80 | - | - | 1.6460 |
| M60 | 1.00 | 0.30 | 64.80 | 60.00 | 99.21 | 90.00 | 87.80 | - | - | 1.9688 |
| M64 | 1.00 | 0.30 | 69.10 | 64.00 | 104.86 | 95.00 | 92.80 | - | - | 2.2827 |
Frequently Asked Questions
What grades of nonferrous metal does ASTM F467 cover for iso 4033?
ASTM F467 covers copper (C11000), brass (C26000, C27000, C46200, C46400), bronze (C51000 phosphor, C61300/C61400/C63000 aluminum, C64200, C65100/C65500/C66100 silicon, C67500 manganese), cupro-nickel (C71000, C71500), nickel-base alloys (N04400 Monel 400, N04405, N05500 Monel K-500, N06059 Alloy 59, N06625 Inconel 625, N06686, N10001 Hastelloy B-2, N10276 Hastelloy C-276), aluminum (A92024, A96061, A97075), and titanium grades - all available for this nut family at TorqBolt.
What is the dimensional standard for these iso 4033?
This product follows ISO 4033, the dimensional standard for iso 4033. Material chemistry, mechanical properties, and acceptance criteria follow ASTM F467 / F467M for nonferrous bolting. TorqBolt supplies both inch-series and metric sizes per the applicable ASME or ISO drawing.
Which F467 grades are best for marine and seawater service?
For seawater bolting per F467: Monel 400 (N04400) and Monel K-500 (N05500) resist chloride stress-corrosion cracking and HF acid; nickel-aluminum bronze C63000 is the standard high-strength marine fastener; cupro-nickel C71500 is preferred for condenser tube-sheet bolting; naval brass C46400 is the lower-cost option for routine marine hardware; titanium Grade 2 (R50400) is the premium choice for severe chloride + chemical service.
Are F467 iso 4033 NACE MR0175 acceptable for sour service?
Most F467 nickel and titanium grades are NACE MR0175 / ISO 15156-listed: Monel 400 (N04400), Monel K-500 (N05500) conditional, Inconel 625 (N06625), Hastelloy B-2 (N10001), Hastelloy C-276 (N10276), Alloy 59 (N06059), Alloy 686 (N06686), and all titanium grades (R50400, R52400, R56400, R56401). Aluminum bronzes are generally not preferred for sour service. TorqBolt provides NACE-compliant heat-treat and hardness reports on request.
References & Standards
- ASTM F467 / F467M - Standard Specification for Nonferrous Nuts for General Use
- ASTM F468 / F468M - Companion specification for Nonferrous Bolts, Hex Cap Screws, and Studs (mate with F467 nuts for matched-alloy assemblies)
- ASTM F436 / F436M - Hardened steel washers (ferrous washer companion when nonferrous washers are not specified)
- NACE MR0175 / ISO 15156 - Sour-service hardness limits for petroleum and natural gas industries
- ASME B18.2.2 / B18.2.4.1M / B18.2.4.6M and ISO 4032 / 4033 / 4035 - Dimensional standards referenced by F467
- DIN 934 / 439 / 6330 - Metric hex nut dimensional standards
